Softhema JPA - Java Process Automation API Version 1.3

Introduction
JPA is a class library, that gives you access to running applications on the operating system. An application is thereby a process, which uses system resources. To system resources of a process also belongs established threads. A special Thread is the so-called user-interface-thread, in turn this thread creates and manages the windows and control elements of the user-interface. Further operating system resources are program modules. A special feature of the JPA-API is the ability to access user-interfaces of external processes. Like from a magic hand, the applications are operated by simulating keyboard inputs and mouse events for windows and control elements. The operation of an application can be automated with JPA-API. Complexe and frequent user inputs are accomplished through program control. From a visual point of view, JPA-API is like a software-robot, which simplify or extend the user-interface of an existing software system. To reduce frequent mouse and keyboard inputs, the JPA-API can accomplish this task for you. New functionalities can be added to existing applications without having to know details about their programming. There are many applications of JPA-API. More to this see use-cases.
In designing the JPA architecture, a lot of emphasis was made to make sure that the interfaces for processes, threads, windows and program modules are independent of the operating system. The JPA interfaces serves as common denominator for widely-used operating systems with a window-based user-interface. Implementing JPA-API in operating systems other than Microsoft Windows is principly feasible without big changes to the interfaces. The advantage for this neutral design is that the integrator doesn't have special programming knowledge of the operating system. Specific extensions of the operating system are nevertheless made available by extended classes/interfaces. The interface AppProcess represents for example a started application. The interface AppProcess_win32 is derived from the interface AppProcess. AppProcess_win32 makes specific functionalities of the operating system available. Another simular example is the interface AppWindow. Through the method getWindowHandle() of the extended interface AppWindow_win32, which represents a Win32-window, can the HWND of the window be requested. The HWND is a handle (number, integer value), which uniquely identifies a window.

The following is a list of some JPA features:

  • launching an application (program)
  • getting all running processes on the computer
  • getting the running threads of a process
  • requesting the toplevel windows(frame and dialogue windows) of an application
  • accessing and manipulating of user-interfaces
  • catching of events within user-interfaces
  • accessing control elements like pushbuttons, lists, dropdown lists, labels and input text fields
  • requesting program modules (executable file and libraries) loaded in the memory of a process
  • loading program libraries (in Windows: DLL) and calling functions from the library

The class AutomationManager and the interface ApplicationController play an important role in the JPA-API. AutomationManager is a class, which realizes the design pattern singleton. The design pattern singleton allows requesting a single instance of the class AutomationManager through the method getInstance() from anywhere in your source code. ApplicationController is an interface which can be requested from the AutomationManager. The ApplicationController represents the operating system (computer). The ApplicationController allows launching of applications and requesting of all running processes on a computer. Furthermore specific extensions of the operating system offered by a specialized interface. Under Microsoft Windows, the interface ApplicationController_win32 makes DDE (dynamic DATA Exchange) for interprocess communication and accessing the Windows Registry (configuration database) available. Basically, for integrating JPA-API in your program, the ApplicationController must be requested. The local ApplicationController refers to the computer, on which the JVM runs your program.
The introductory code snippet follows:
  import softhema.system.automation.*;
  import softhema.system.automation.win32.*;
  .
  .
  .
  AutomationManager manager = AutomationManager.getInstance();
  ApplicationController controller = manager.getApplicationControllerLocal();

  //Specialized for windows:
  ApplicationController_win32 controller_win32 = (ApplicationController_win32) controller;

Through the instance of the ApplicationController one can request an array with current running processes:
  AppProcess[] processes = controller.getAppProcesses();

An important task of ApplicationController is starting an application:
  AppProcess process = controller.exec("calc.exe");
The return value is an object, which represents the started application(process). Through the process-object one can request the main window. After the start of application, the main window is not started immediately. For this reason one should insert a short delay period. The source code section follows:
   Thread.sleep(1000);
   AppWindowTopLevel windowMain = process.getWindowMain();
The returned object represents the frame-window of the application.

A specific usage is possible through the capability to access the computer remotely. This is realized through a RMI Client/Server architecture. The server, also called the Remote-Application-Controller, has to be started on the host. You will find more info about this subject under How to start the Remote-Application-Controller. Through the IP-address of the host computer you are able to call the Remote-Application-Controller. The calling computer is called the RMI-client. This is an ordinary Java application which implements the JPA-API and calls the operating system objects of the ApplicationController. Technically you can reuse the same source code as for the local ApplicationController. Only difference in code compared to previous sample code is the line where the ApplicationControler is called:
   ApplicationController controller = manager.getApplicationControllerRemote( "hostname or ip-address" );
When you call the method getApplicationControllerRemote, you have to enter the IP-address or the Hostname of the computer, where the Remote-Application-Controller is running. Before the Remote-Application-Controller is available through the Internet/Intranet, you have to set it online.

The core-API from Java already has an option to start external applications. You can do this through the method exec(...) in the runtime class.

The same functionality is available through the method exec(...) of the ApplicationController class in the JPA-API. We expanded the exec method and added a few parameters to it. Now you have the option to change the display of the main window after you started the application. The desired position and the display status (maximized, normal and minimized) of the main window can be set. We need to mention that some applications may ignore some of these settings and won't work for those applications.
The core functionality of the JPA-API is it, to allow access to the application. The design of the JPA-API is an object oriented class library. Each operating object is represented through specialized Java classes. More detailed explainations follow here.

There are one ore more threads in one process execting the program code. Thread have to be viewed as lightweight processes. All threads of one process share the same virtual (main) memory and have access to the resources of the program. After a process is started, first a main thread in the main() function is started to execute the program. If the application has a user interface, the main thread usually produces the dialogs and windows. During the execution of a process, the modules are stored in memory.

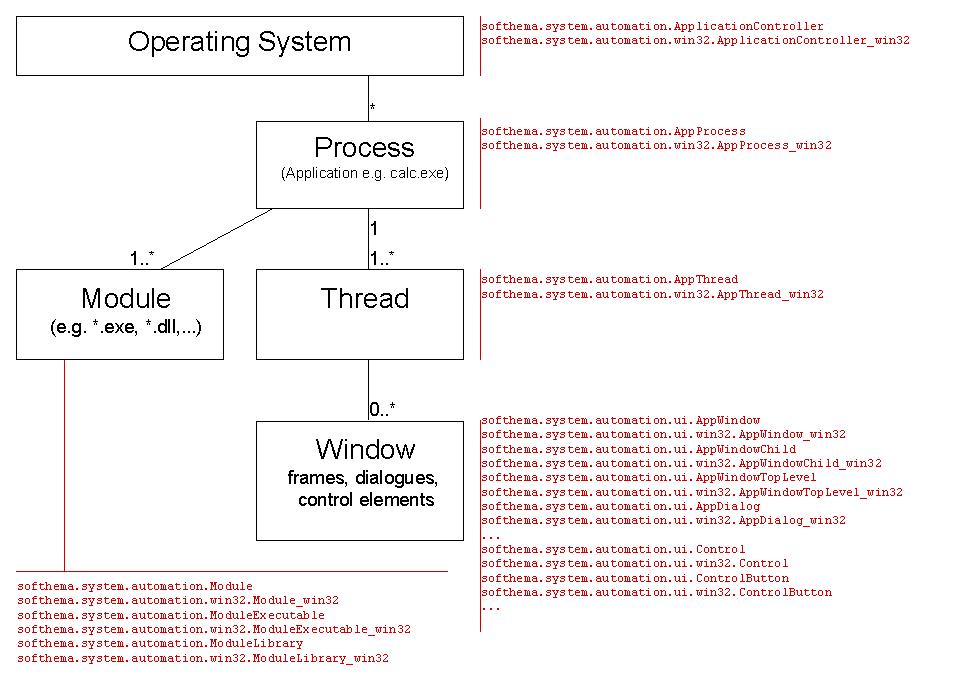

The picture above shows the relations between the operating systems objects. A process has one or more threads. The first thread is the main thread. A thread on the other hand can own windows in a user interface. If there are any events in the windows, the thread will react accordingly. Under UML classdiagramm of the JPA-API, a few important classes and the relations between them are displayed.
